Perforated Aluminum Veneer

Product Overview

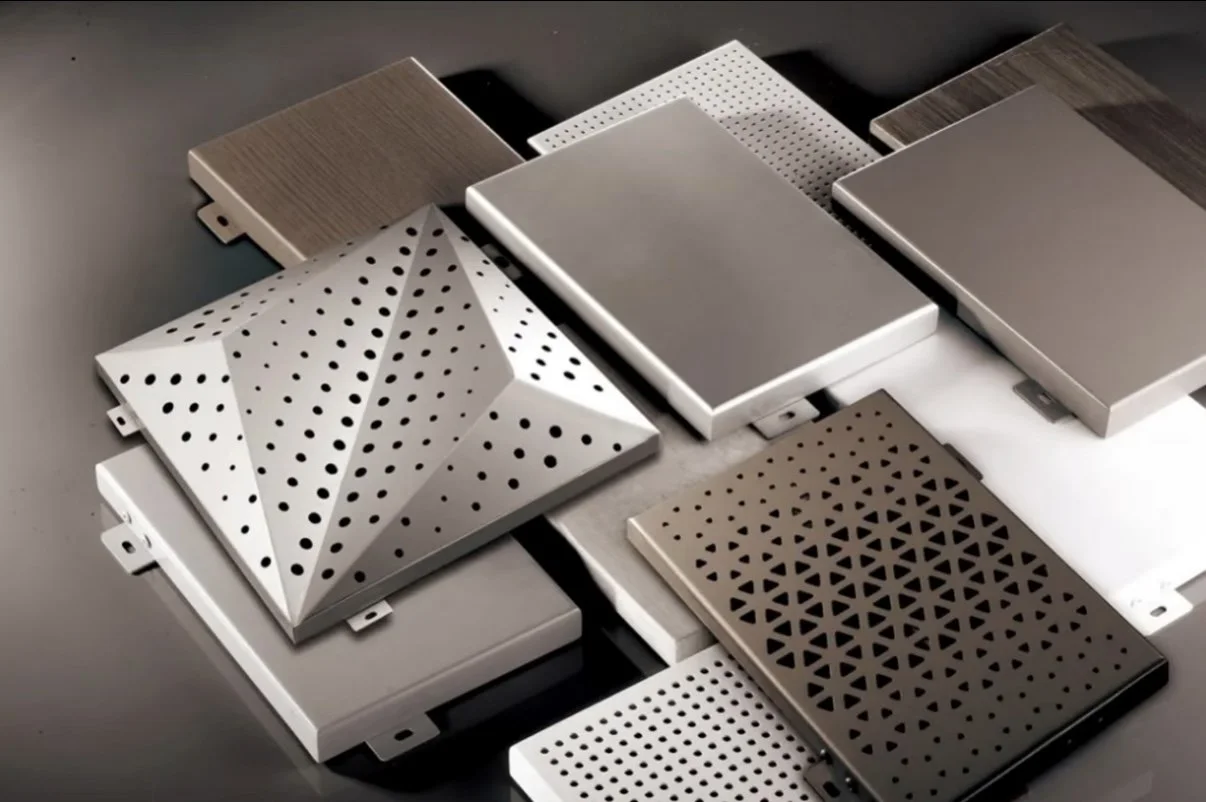

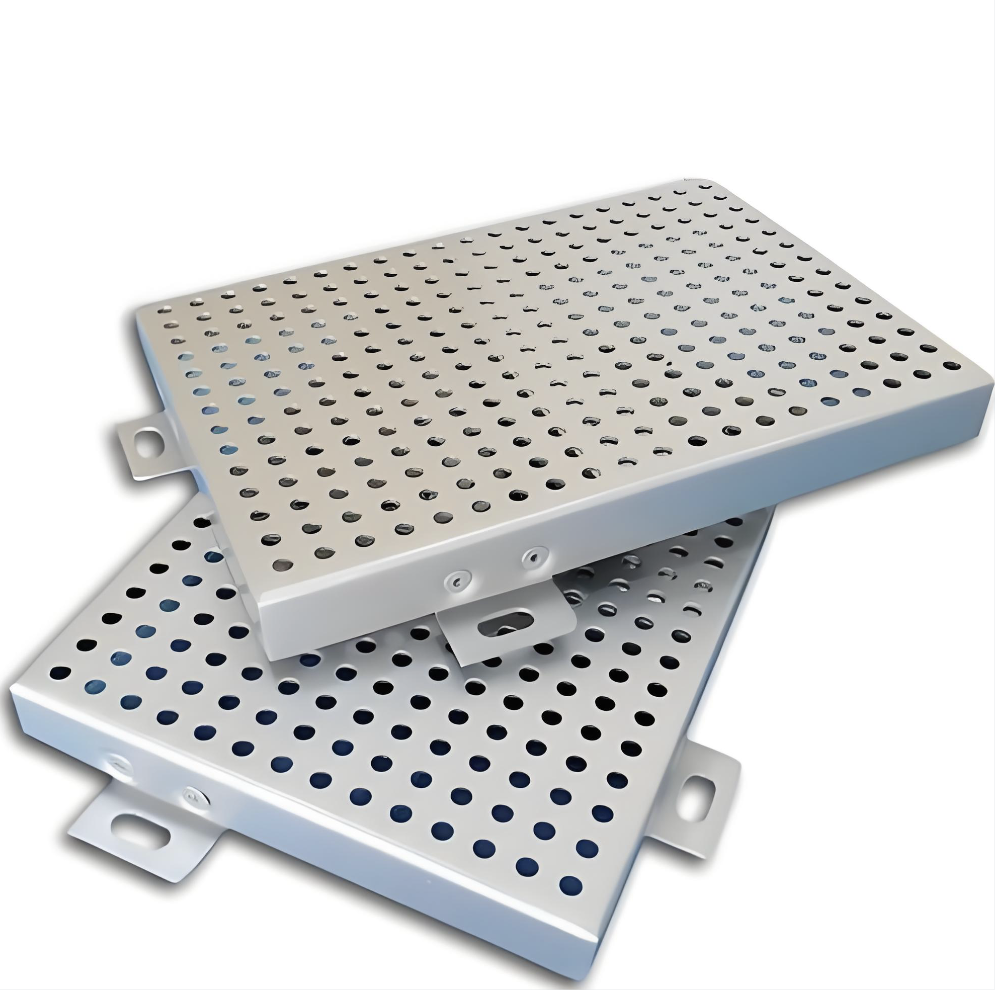

Perforated aluminum veneer is a decorative board with various shapes of holes (round holes, square holes, etc.) Using advanced CNC punching and laser-cutting technology, AluNJJX creates precision-perforated panels with customizable patterns, hole sizes, and layouts. Each panel is engineered for both visual appeal and practical benefits, including ventilation, sound absorption, and light filtration. The products are mostly used in airport halls, subways, stations, concert halls, indoor ceilings, and partition walls.

Specifications

• Standard Size: 150mm x 150mm x 20mm (custom sizes available)

• Material: High-quality aluminum alloy (AA1100, AA3003)

• Aluminum Thickness: 1.5 mm – 4.0 mm (customizable)

• Coating Thickness: 35-40 microns (PVDF Three-Coat), or available in 25-30 microns (PE Two-Coat) or 40-50 microns (Powder Coating)

• Coating Options: PVDF paint, PE paint, Wood grain finish, Powder

• Perforation Options: Punching round hole - 5mm (flat/shaped)

• Color Options: Full RAL color range, metallic, wood grain, or custom designs

• Hanging code size: 20mm x 20mm x 2mm

• Maximum length: 6 meters; Maximum width: 1.80 meters; Maximum thickness: 6mm

• Custom Design: Panels can be produced based on customer-provided drawings or specifications
